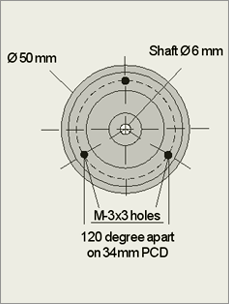

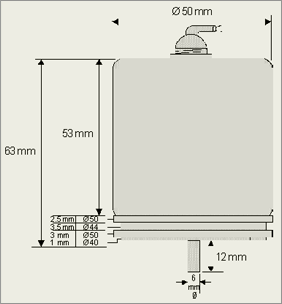

Rotary Encoders

Rotary Encoders are ideal solutions for applications requiring measurement of speed, length, travel, direction of rotation etc. They are robustly constructed to withstand the conditions encountered in industry such as Printing, Packaging, Metal Processing, Textile and Machine Tool

Specifications
SUPPLY VOLTAGE	5 V DC or 5-24 V DC
SUPPLY CURRENT	50 to 70 mA (quiescent)
OUTPUT PULSES	Up to 2500 PPR
OUTPUT PULSE AMPLITUDE	Same as supply voltage
OUTPUT CHANNELS	(A) Single channel square pulses. (A B) Two channel 90 deg. phase shifted square pulses. (A B Z) Two channel 90 deg. phase shifted square pulses with a marker pulse/revolution. (ABZ/L) Same as above with differential line driver output (Six-channel)
OUTPUT CABLE LENGTH	0.5 meter (Standard)
OUTPUT FREQUENCY	25 KHz Max. (Upto 512 PPR), 6000 R.P.M. (Max.) 100KHz (Max.) (from 513-2500 PPR).
MECHANICAL BODY	Machined Aluminium body in anodised finish.
SHAFT	Stainless steel (SS-304) of 6/10 mm. dia., 12/22 mm long.
PROTECTION CLASS	Weather proof as per IP-64

OUTPUT WAVE FORM

OUTPUT	O/P Rating	Sink	Source
Standard	5 V DC(TTL) or 5-24 V DC	20 mA	20 mA
Differential Line Driver	5V DC(TTL) or 5-24V DC	20 mA	20mA

ABSOLUTE ENCODER
(FOR 6, 8, 10, 12, 20, 21 or 24 - STATION TURRET)

Specifications
SUPPLY VOLTAGE	15-30 V DC (Ripple free)
SUPPLY CURRENT	50 to 70 mA (quiescent)
OUTPUT PULSES	4 Bit binary data with strobe and parity
OUTPUT PULSE AMPLITUDE	Same as supply voltage
OUTPUT CABLE LENGTH	0.5 meter (Standard)
MECHANICAL BODY	Machined Aluminium body in anodised finish.
SHAFT	Machined Aluminium body in anodised finish.
PROTECTION CLASS	Weather proof as per IP-64

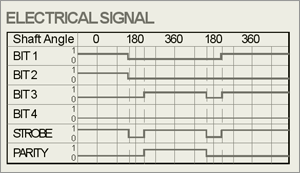

	Position Number
	1	2	3	4	5	6	7	8
BIT 1	1	0	1	0	1	0	1	0
BIT 2	0	1	1	0	0	1	1	0
BIT 3	0	0	0	1	1	1	1	0
BIT 4	0	0	0	0	0	0	0	1
STROBE	1	1	1	1	1	1	1	1
PARITY	1	1	0	1	0	0	1	1

Note : Encoders with 8 Bit Binary data are also available.

OUTPUT	O/P Rating	Sink	Source
Voltage	15-30V DC	----	50 mA
