Mechanical Specifications |
| |
|
| |
| ENC-82/10-2500
ABZ/L/5V |

|
|
|
|
| |
| O/P Pulses |
Up to 2500 PPR |
| Mounting |

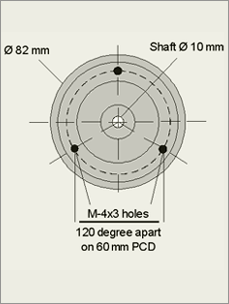

Servo/Face Mounting by 3 screws of M-4,
120 degree apart on a PCD of 60mm dia. |
| Dimensions |

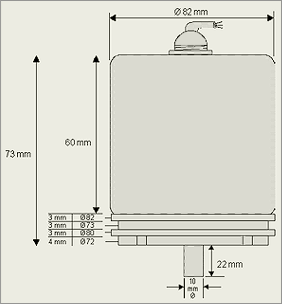

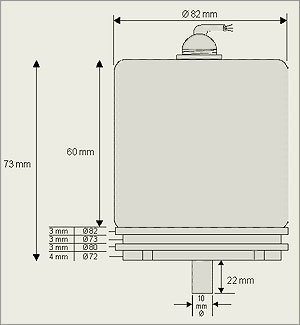

Body Dia.=82 mm, Depth=73mm (Excluding
Shaft & cable gland). |
|
| |
|
| |
|
| |
| ENC-58/6-1500
ABZ/L/5V |

|
|
|
|
| |
| O/P Pulses |
Up to 1500 PPR |
| Mounting |
Servo/Face Mounting by 3 screws of M-4,
120 degree apart on a PCD of 42mm. |
| Dimensions |

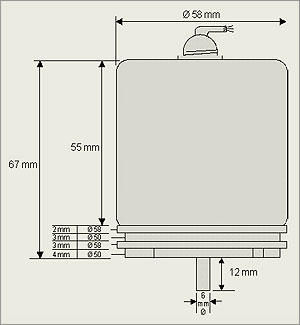

Body Dia.=58 mm, Depth=67mm (Excluding
Shaft & cable gland). |
|
| |
|
| |
|
| |
| ENC-50/6-
1000 ABZ/5-24V |

|
|
|
|
| |
| O/P Pulses |
Up to 1000 PPR |
| Mounting |
Servo/Face Mounting by 3 screws of M-3,
120 degrees apart on a PCD of 34mm. |
| Dimensions |

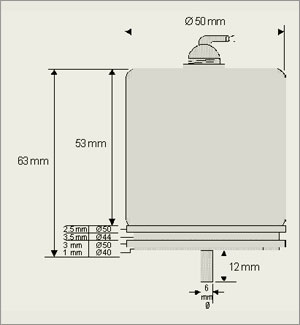

Body Dia.=50 mm, Depth=63mm (Excluding
Shaft & cable gland). |
|
| |
|
| |
|
| |
| Due
to continuous development & improvements, Illustration/Specifications
are subject to change without notice |
|
|
|
|
