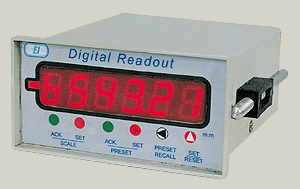

| FEATURES
: |
| Pulse
Multiplication: To improve the resolution
of the DRO pulse multiplication technique has been used
i.e. input module counts the leading and trailing edges
of the pulse trains from ch-A and ch-B of the encoder.
Hence the CRO counts (PPRx4) per revolution of the encoder. |
| Start from preset : A
preset value can be set and reading will start from the
preset value. |
| Scaled reading :
A scale factor can be set within the range from 0.00001
to 9.99999. |
|
| |
|
| |
| Due
to continuous development & improvements, Illustration/Specifications
are subject to change without notice |
|
| |
|
|
|
|
